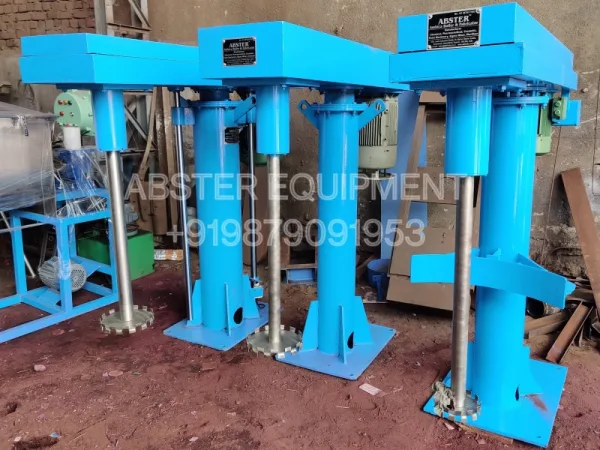

Hydraulic High Speed Dissolver

The Hydraulic High Speed Dissolver  applies to all kind of liquid to pre-mix,disperse,color matching,etc High-Efficiency production,hydraulic lifting,frame can turn around flexible.

Product Introduction

The High Speed Dissolver applies to all kind of liquid to pre-mix, disperse, color matching,etc

High-Efficiency production, hydraulic lifting, frame can turn around flexible.when mixing and dispersing,there is little air suction.it can dissolve the material quickly and particle become finer

High Speed Disperser Working principle

Saw shaped round dispersion disc is rotating in the container/cylinder with a high speed to finish the mixing of liquid and solid materials, humidification and dispersion.

1) The circulated paints pigments materials generate whirlpool in the container, so the particle on the surface of the pigment will drop to the whirlpool bottom.
2) It forms the overfall area along the space where 2.5mm~5.0mm distance from the disc brim. It results strength shearing force upon the particles.
3) There are two flows outside of this area upon and down to make sure the effective cicluating and turning around function of the paints.
4) There are different levels under the disc. Liquid with different speeds disperse each other.

Specification
